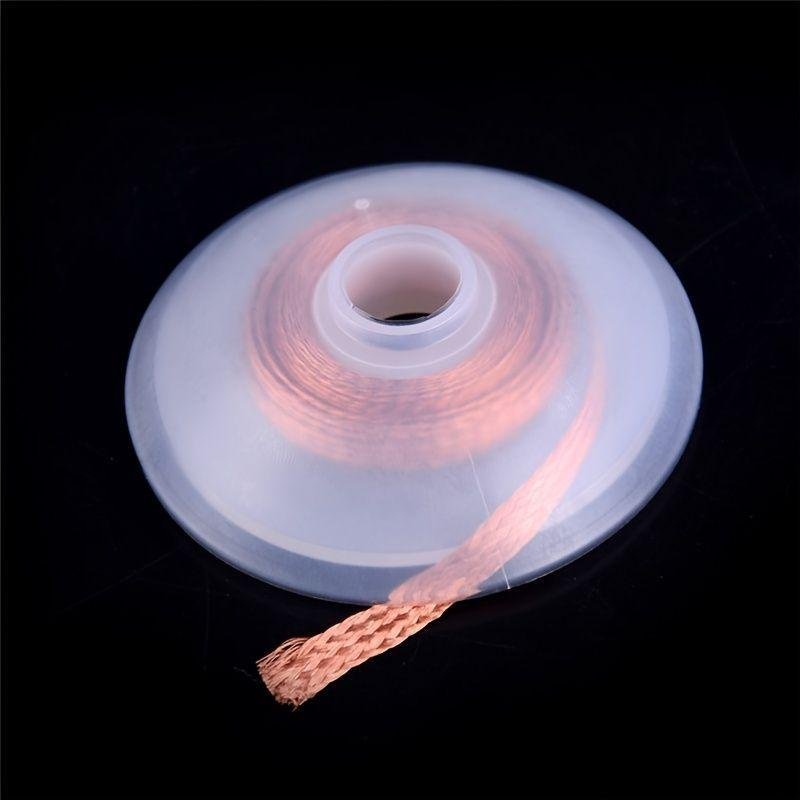

Precision Solder Management
In modern electronics repair, removing solder is just as important as applying it. When a solder bridge occurs (where solder accidentally connects two adjacent pins), or when a component like a capacitor needs replacing, the de-soldering braid acts as a “sponge” for molten metal. The 3.5mm width provides a larger surface area, making it the go-to choice for clearing large through-holes or wide SMD pads that smaller wicks would struggle to empty.
Key Technical Pillars & Features:
-
High-Purity Copper Weave: The fine, geometric braid pattern maximizes surface tension, ensuring that once the solder reaches its melting point, it is drawn deep into the copper strands and held there.
-
Pre-Fluxed Efficiency: The braid is impregnated with a high-performance flux (often a “no-clean” rosin type). This prevents the copper from oxidizing under heat and allows the molten solder to “wet” the braid immediately upon contact.
-
Thermal Protection: Because the copper is oxygen-free, it transfers heat with extreme efficiency. This allows for a “fast-in, fast-out” desoldering technique, protecting the adhesive bond of the PCB pads which can easily “lift” if overheated for too long.
-
Versatile Application: While 3.5mm is excellent for larger joints, the braid is soft and flexible, allowing it to be folded or angled to reach specific areas without affecting neighboring components.
Technical Specifications
| Feature | Specification |
| Material | Pure Oxygen-Free Copper |
| Width | 3.5 mm |
| Length | 1.5 Metres |
| Flux Type | Pre-fluxed (Rosin-based) |
| Compatibility | Lead-based and Lead-free solders |
| Usage | PCB Rework, Component Replacement, Bridge Removal |
