Powering Modern Diagnostics & Programming

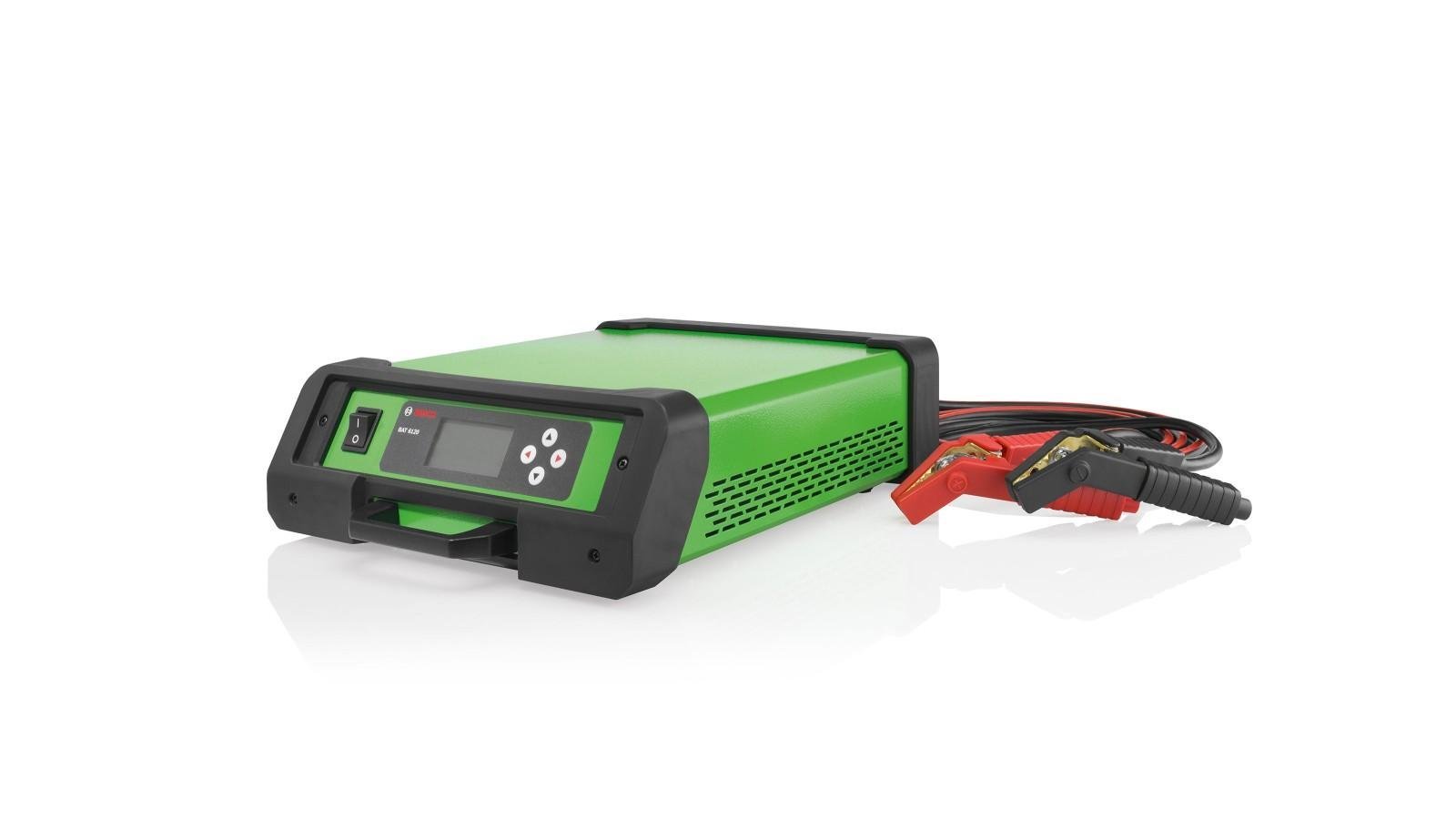

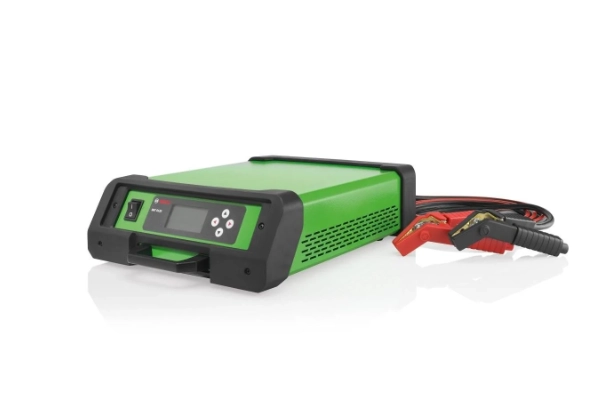

Modern vehicles are essentially “computers on wheels,” with high quiescent currents that drain batteries rapidly during diagnostic or programming sessions. The BAT 6120 provides a steady, ripple-free current, ensuring that vehicle control units receive the precise voltage required for successful flashing or calibration, minimizing the risk of “bricking” expensive modules due to voltage drops.
Key Technical Pillars & Semantic Entities:
-
Dual-Function Intelligence:
-
Battery Charging Mode: Smart, fast-charging profiles for Flooded, AGM, EFB, GEL, and Lithium (LiFePO₄) batteries. It includes specific “wake-up” routines for dormant Lithium batteries.
-
Power Supply Mode: Delivers a stable 120A continuous output, ensuring the vehicle’s electrical system voltage remains constant during power-intensive diagnostic tasks.
-
-
Flexible Operation Modes:
-
Showroom Mode: A “stable and quiet” mode for keeping vehicle electronics (infotainment, lighting) active in a showroom without draining the battery.
-
Battery Replacement Mode: Safely maintains system voltage so that settings (radio codes, seat memory, ECU adaptions) are not lost when the main battery is disconnected.
-
-
Future-Proof Design: Through its integrated USB port, you can upload new charging characteristics as new battery technologies enter the market, extending the tool’s lifespan significantly.
-
Ergonomic Workshop Integration: Designed for versatility, it can be mounted to a wall or tucked neatly beneath a car. The large, 3-inch, 4-color LCD rotates 180° for readability in wall-mounted configurations.
Technical Specifications:
| Feature | Specification |
| Max. Output Current | 120A Continuous |
| Output Power | Up to 1750W |
| Supported Batteries | WET, AGM, EFB, GEL, Lithium (LFP) |
| Battery Capacity Range | 10–450 Ah |
| Dimensions (WxHxD) | 329 x 116 x 433 mm |
| Weight | 8.5 kg (18.7 lbs) |
| Connectivity | USB (Firmware Updates) |
| Protection Rating | IP20D |
Technician’s Insight: For high-stakes ECU programming, always use the dedicated Power Supply Mode. Unlike standard “trickle” chargers, this unit is specifically engineered to handle high-current “spikes” that occur when modules wake up or perform communication handshakes, keeping the vehicle voltage rock-solid within the manufacturer’s specified range.
