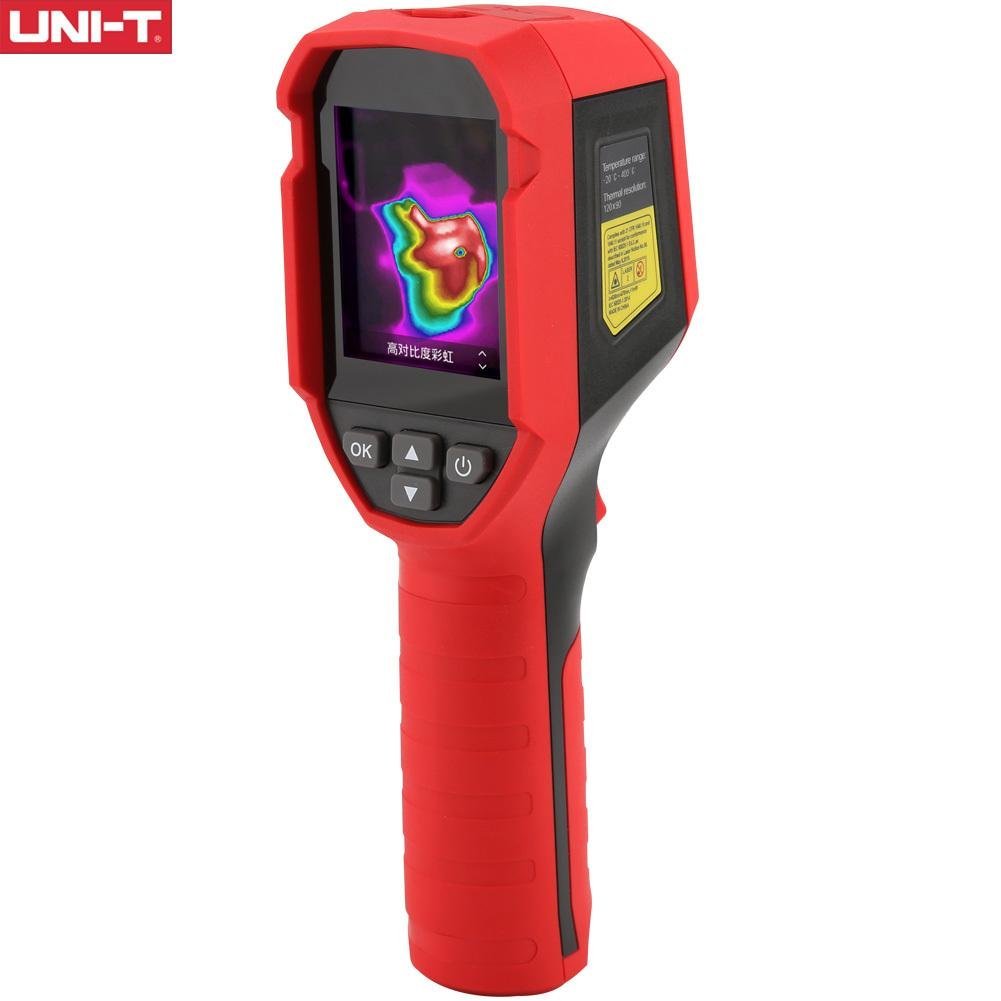

UNI-T UTi120S Infrared Thermal Imaging Camera
€295.00
The UNI-T UTi120S is a handheld infrared thermal imaging camera featuring a 120×90 IR resolution (10,800 pixels) and a wide temperature range from -20°C to 400°C. Designed for durability, it boasts an IP54 rating and 2-meter drop resistance, making it ideal for harsh job sites. With its 2.4-inch TFT display, 25Hz frame rate, and six selectable color palettes, it allows technicians to instantly identify hotspots in electrical panels, HVAC systems, and mechanical engine components. The included PC analysis software and 16GB Micro SD card ensure you can document and report your findings with professional precision.
Free shipping over € 169
Detailed description
Seeing the Invisible with Precision
The UTi120S is more than just a thermometer; it is a visual diagnostic tool that identifies thermal anomalies in real-time. Whether you are searching for a parasitic draw in a vehicle’s fuse box or checking for heat loss in building insulation, the 120×90 sensor provides enough detail to distinguish between individual wires and components.
Key Technical Pillars & Semantic Entities:
-
Thermal Performance: Features a thermal sensitivity (NETD) of <60mK, allowing it to detect minute temperature differences as small as 0.06°C.
-
Rapid Diagnostics: A 25Hz frame rate ensures a smooth, real-time image as you scan moving parts or pan across a room—avoiding the “choppy” lag found in cheaper 9Hz models.
-
Advanced Tracking & Alarms:
-
Hi/Lo Tracking: Automatically pinpoints the hottest and coldest spots in the frame simultaneously.
-
Visual & Audible Alerts: Set temperature thresholds that trigger an LED flash or a buzzer when exceeded.
-
-
Customizable Visualization: Includes 6 color palettes (Lava, Rainbow HC, Black Hot, White Hot, Iron, and Rainbow) to optimize contrast based on the material being inspected.
-
Rugged Build for the Field: The housing is dustproof, waterproof (IP54), and built to survive a 2-meter (6.6ft) drop onto concrete.
-
Data & Analysis: Captured BMP images contain embedded temperature data for every pixel, which can be analyzed and edited using the provided UNI-T PC software.
Primary Application Scenarios:
| Sector | Common Use Cases |
| Electrical | Identifying loose connections, overloaded circuits, and unbalanced loads in breaker panels. |
| Automotive | Diagnosing misfiring cylinders, blocked radiators, slipping belts, and heated seat malfunctions. |
| HVAC/Plumbing | Locating underfloor heating leaks, checking AC vent performance, and finding insulation gaps. |
| Electronics | Detecting overheating ICs or short circuits on PCB motherboards during bench repair. |
Technical Specifications:
-
IR Resolution: 120 x 90 pixels
-
Field of View (FOV): 50° (H) x 38° (V)
-
Battery Life: >9 hours of continuous use (2600mAh Li-ion)
-
Accuracy: $\pm$ 2°C or $\pm$ 2% (whichever is greater)
-
Charging: USB Type-C (Approx. 2.5 hours to full charge)
Technician’s Tip: To get the most accurate reading on reflective surfaces (like shiny copper or stainless steel), apply a small piece of electrical tape or matte paint to the target area. This increases the emissivity and prevents the camera from “seeing” your own body’s reflection instead of the component’s temperature.
