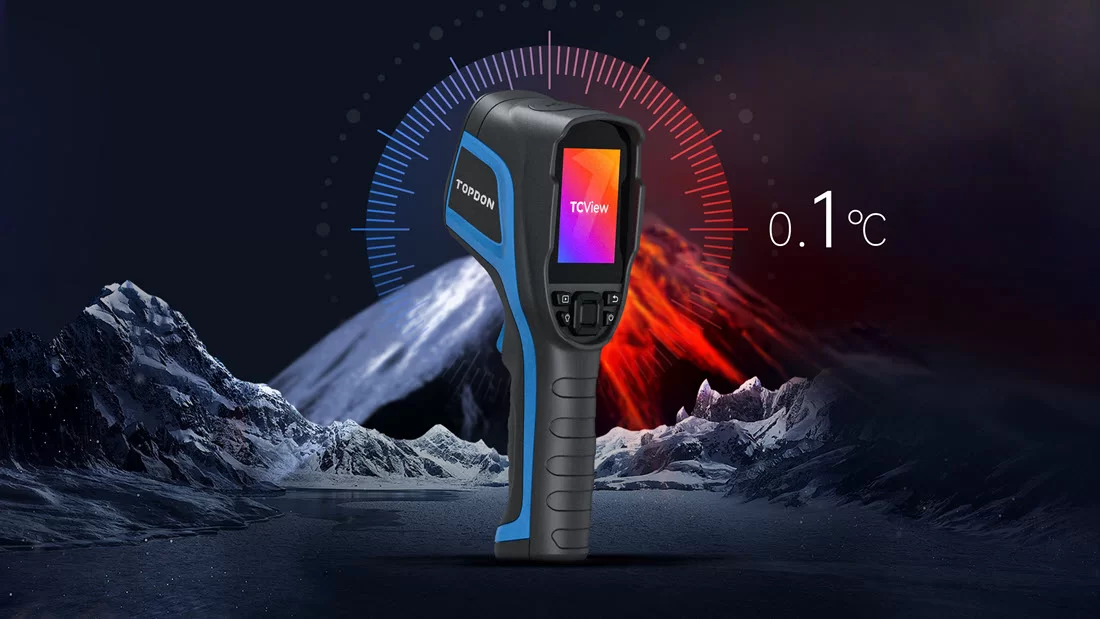

Topdon TC005 Thermal Imaging Camera
€395.00
See the unseen with dual-camera precision. The TOPDON TC005 features a high-definition 256×192 IR sensor paired with a 2MP visible light camera. This combination allows for “Dual Fusion” technology, overlaying thermal data onto real-world images for pinpoint accuracy. With a temperature range of -20°C to 550°C, a 12-hour runtime, and a built-in LED work light, the TC005 is a professional powerhouse for automotive diagnostics, HVAC inspections, and industrial maintenance.
Free shipping over € 169
Detailed description
High-Resolution Dual Imaging
While many handheld units only show a thermal map, the TC005 includes a 2-megapixel visible light lens. This enables four distinct viewing modes that make it much easier to identify specific components in a crowded engine bay or electrical panel:
-
Thermal Mode: Standard infrared view.
-
Visible Mode: Standard digital camera view.
-
Dual Fusion: Blends thermal and visible images (50/50) to show heat signatures on top of physical outlines.
-
Picture-in-Picture (PiP): Displays a thermal window inside a larger visible light frame.
Industrial-Grade Accuracy
The TC005 is built for detail. With a thermal sensitivity (NETD) of <40mk, it can detect temperature differences as small as 0.05°C.
-
Expanded View: A wide 52.5° x 39.5° Field of View (FOV) allows you to capture more of the target area without having to step back—ideal for inspecting large radiator surfaces or residential walls.
-

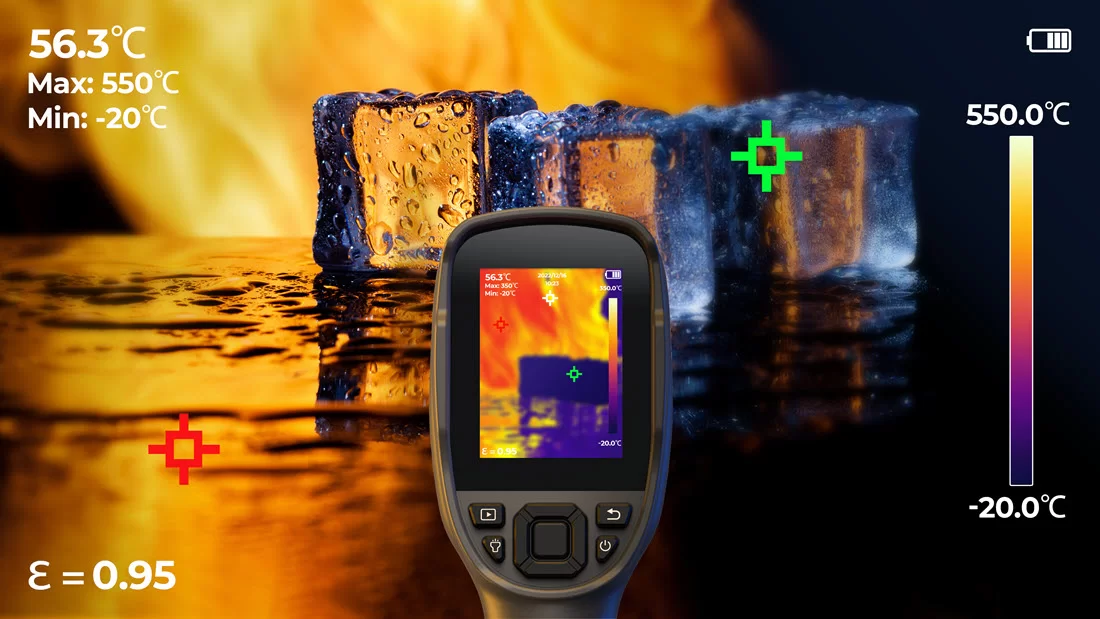

Auto-Tracking: The software automatically identifies and labels the highest, lowest, and center-point temperatures in real-time.
Advanced Connectivity & Analysis
The TC005 isn’t just a standalone viewer; it’s a data collection tool.
-
PC Projection: Connect to a Windows PC via USB to project your screen in real-time, making it an excellent tool for customer demonstrations or training.
-
Secondary Analysis: Use the included TDView software to perform deep-dive analysis on saved images, allowing you to adjust color palettes and generate professional PDF reports.
-
Video Recording: Unlike more basic models, the TC005 supports internal video recording to capture thermal transitions over time.
Rugged Workshop Design
-
One-Day Runtime: The 5000mAh battery provides a full 12 hours of operation, ensuring it’s ready for back-to-back jobs.
-
Built-In LED: Features a bright integrated work light for recording readings in dark engine bays or crawl spaces.
-
Tough Build: IP54 rated for protection against dust and splashes, and drop-tested to 2 meters.
Technical Specifications
| Feature | Detail |
| IR Resolution | 256 x 192 Pixels (20Hz Refresh Rate) |
| Visible Camera | 2 Megapixel |
| Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Display | 2.8″ Color LCD (320×240) |
| Battery Life | 12 Hours (Continuous Use) |

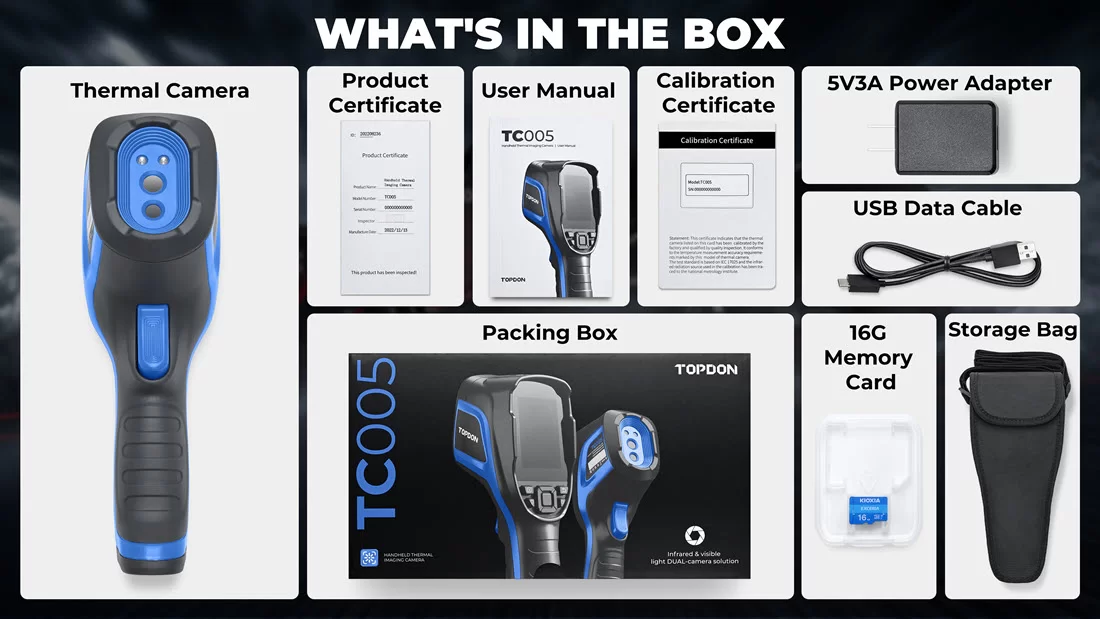

| Storage | 16GB MicroSD (Included) |
| Imaging Modes | Thermal, Visible, Dual Fusion, PiP |
| Protection | IP54 / 2m Drop Proof |
