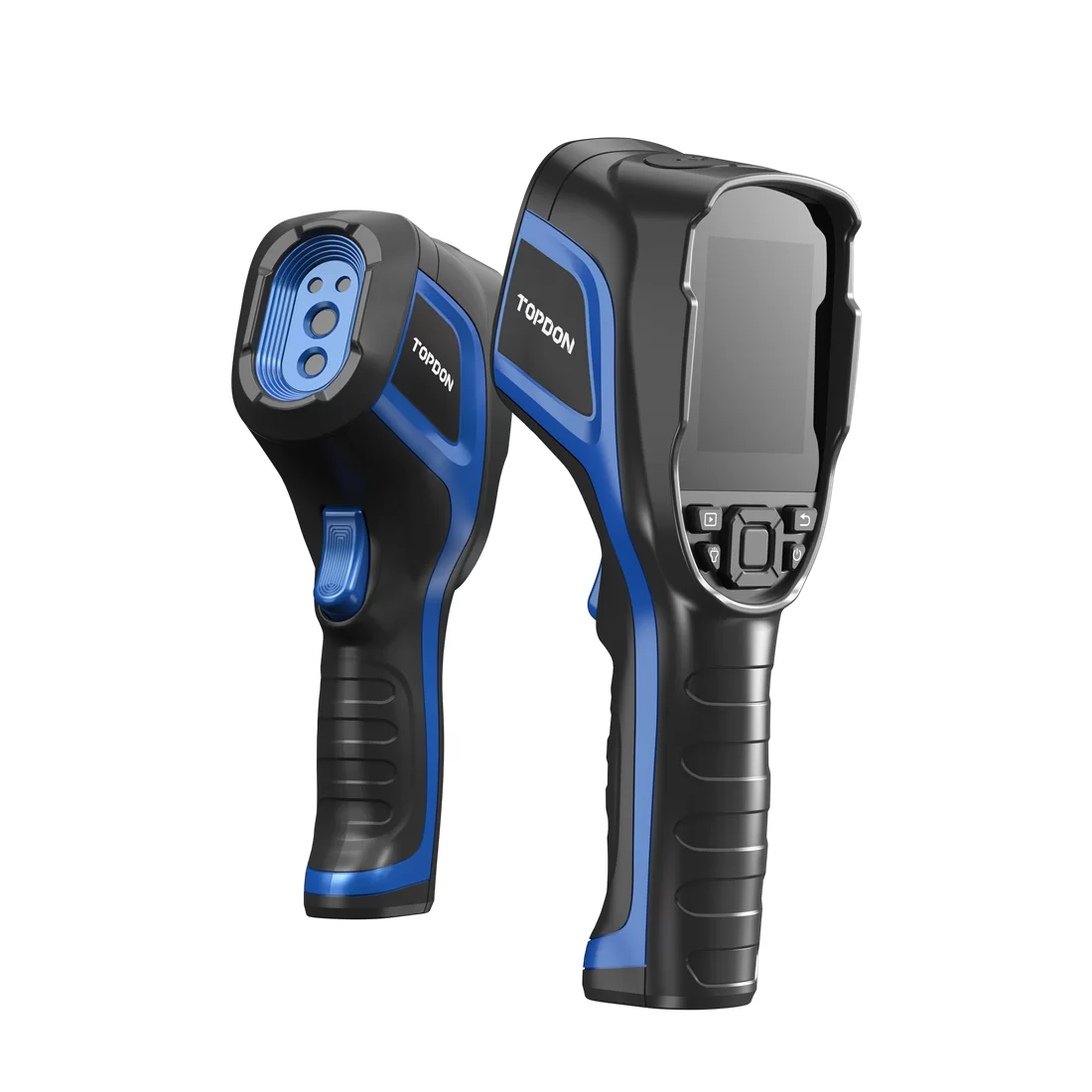

Topdon TC004 Lite Thermal Imaging Camera
€260.00
Industrial precision in a rugged handheld design. The TOPDON TC004 Lite delivers professional-grade 256×192 thermal resolution with a 2.4-inch display for instant temperature visualization. Capable of measuring from -20°C to 550°C, it is specifically engineered for automotive technicians, electricians, and home inspectors who need a standalone tool that survives a toolbox environment. With an extra-long 12-hour battery life and a rugged IP54 rating, it is the perfect “always-ready” tool for detecting parasitic draws, cooling system blockages, and electrical hotspots.
Free shipping over € 169
Detailed description
-
Unmatched Battery Endurance
One of the standout features of the TC004 Lite is its power efficiency. Equipped with a high-capacity internal battery, it provides up to 12 hours of continuous runtime. This makes it the ideal choice for long inspection days in large facilities or for mobile technicians who don’t want to worry about charging their gear between every job.
High-Definition Thermal Clarity
Don’t let the compact size fool you; the TC004 Lite doesn’t compromise on data.
-
49,152 Pixel Detail: The 256×192 sensor provides a crisp thermal map, allowing you to distinguish between individual wires on a crowded terminal block or identify a single clogged core in a radiator.
-
High Sensitivity: With a thermal sensitivity (NETD) of <40mk, it detects minute temperature differences that cheaper imagers miss.
-
Fast Refresh Rate: The 20Hz frequency ensures smooth imaging as you pan across an engine bay or electrical panel, eliminating the “choppy” lag found on basic units.

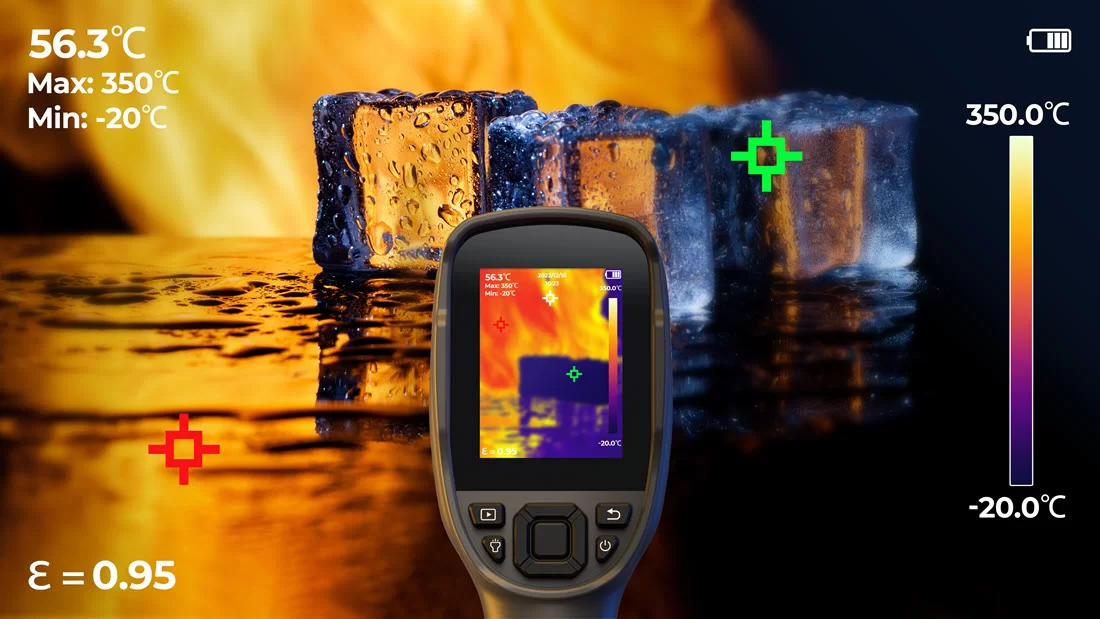

Professional Measurement Modes
The TC004 Lite is built for data-driven diagnostics. It offers three distinct measurement points on-screen simultaneously:
-
Center Point: For specific target measurement.
-
Maximum Temperature: Automatically tracks the hottest spot in the frame.
-
Minimum Temperature: Automatically tracks the coldest spot in the frame.
-
Multiple Color Palettes: Choose from 4 palettes (Iron, Rainbow, White Hot, Black Hot) to best highlight the specific thermal contrast of your environment.
-
-
Built for the Real World
-
Ruggedized Construction: The TC004 Lite is IP54 rated (dust and splash-proof) and is drop-tested to 2 meters (6.6 ft), ensuring it survives the inevitable falls onto a concrete shop floor.
-

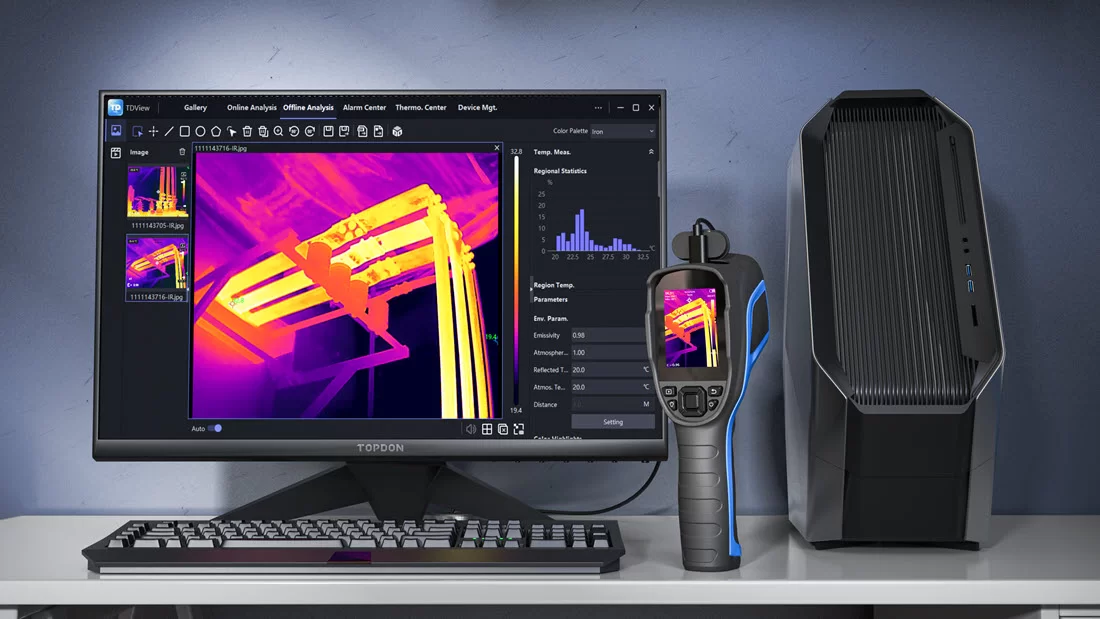

PC Analysis Support: Capture images to the included memory card and connect to a PC via USB for secondary analysis and professional report generation.
-
Instant Start-Up: Powers on and is ready to measure in seconds, making it much faster than connecting a smartphone-based dongle.
Technical Specifications
Feature Detail IR Resolution 256 x 192 Pixels (20Hz Refresh Rate) Temperature Range -20°C to 550°C (-4°F to 1022°F) Display 2.4″ High-Brightness Screen Sensitivity (NETD) < 40mk Accuracy ±2°C or ±2% of reading -
