Topdon TC001 – Thermal Imaging Camera

“Seeing the Unseen” on Your Screen

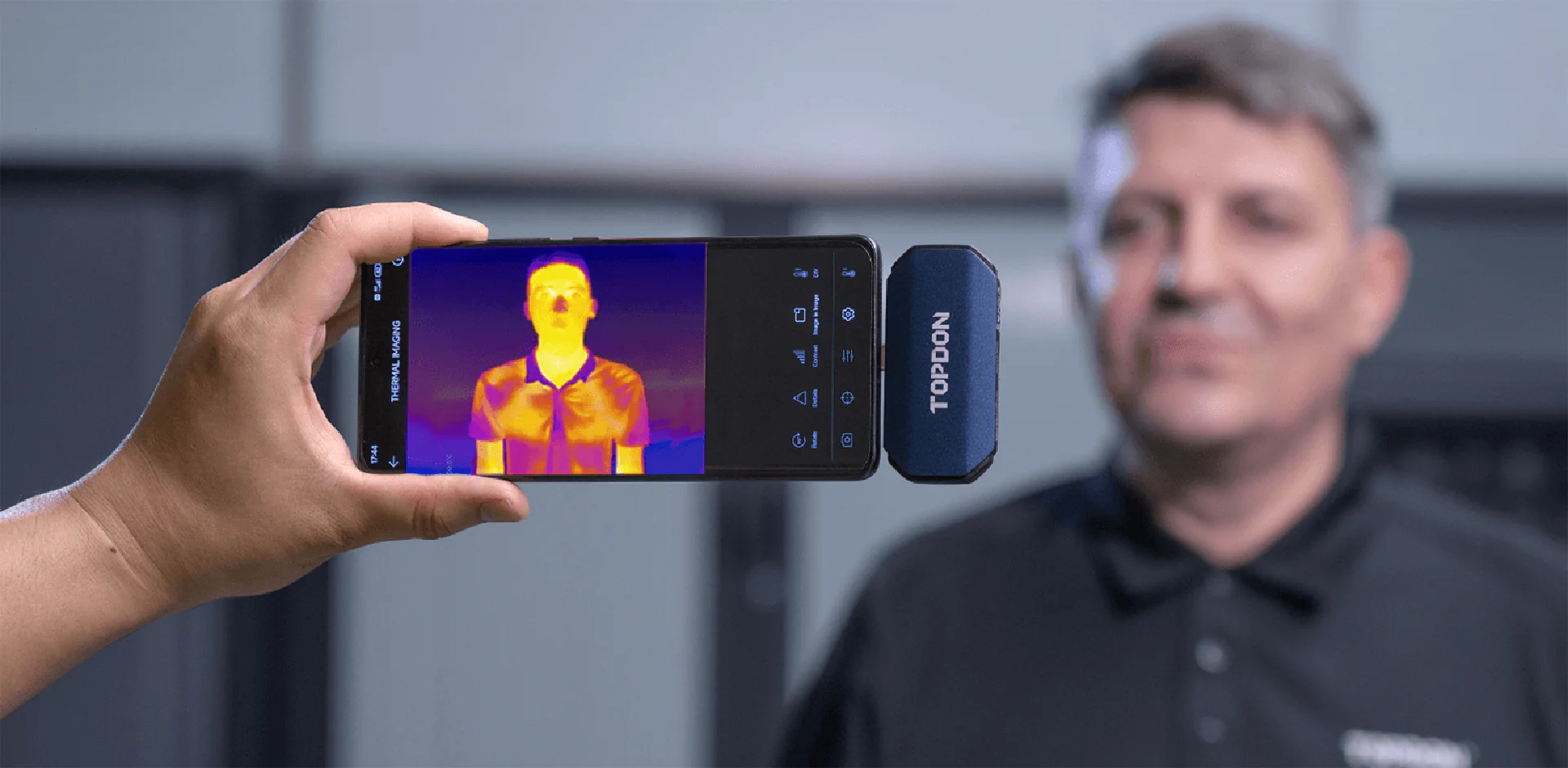

The power of the TC001 lies in its integration with the Topdon Thermal App (for mobile) or dedicated PC software. By using your phone’s processor and display, the TC001 delivers a fluid, real-time thermal feed without the weight or cost of a standalone professional thermal imaging unit.

Key Technical Pillars & Semantic Entities:

• High-Resolution IR Detector: The 256 x 192 pixel resolution provides crisp images, allowing you to see fine details like individual traces on a circuit board or specific overheated components in an engine bay.



• Versatile Temperature Range: Capable of measuring from -20°C to 550°C (-4°F to 1022°F) with a measurement accuracy of ±2°C, making it suitable for everything from frozen pipes to high-temperature furnace troubleshooting.

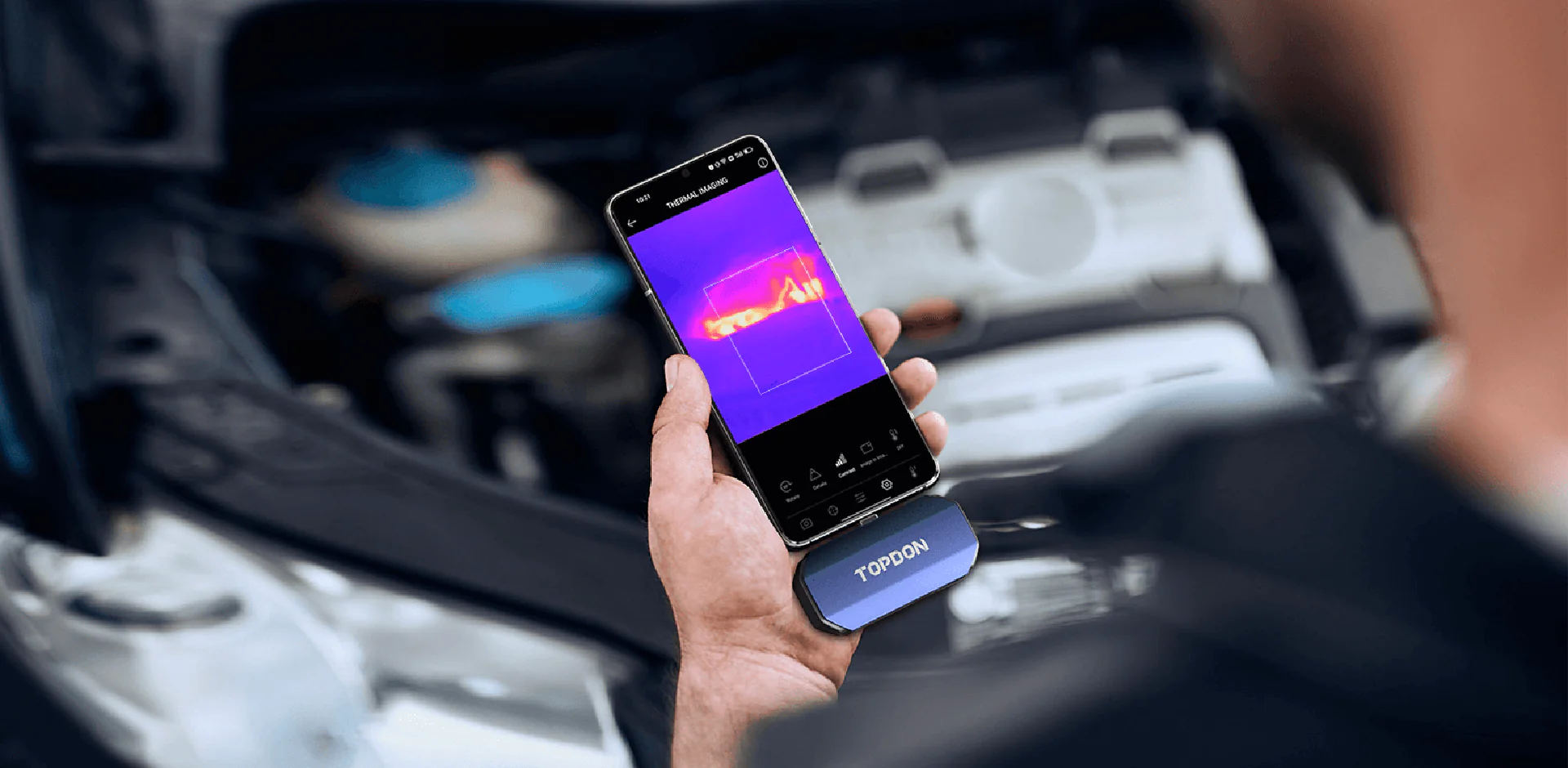

• Automotive Diagnostic Power: * Wiring & Fuses: Instantly locate electrical resistance issues, shorts, or overloaded circuits that create “ghost” heat.

  • Mechanical Health: Identify dragging brake calipers, overheating wheel bearings, or restricted exhaust flow (catalytic converters) that standard OBD tools can’t “see.”



• Home & HVAC Inspection: Detect heat loss through window frames, identify water leaks behind walls (via temperature differential), or see exactly where your floor heating pipes are running.



• Customizable Visualization: The software offers multiple color palettes (Iron, Rainbow, White Hot, etc.) and enables “Picture-in-Picture” modes that overlay the thermal image onto the standard camera view for better reference.



Technical Specifications:
